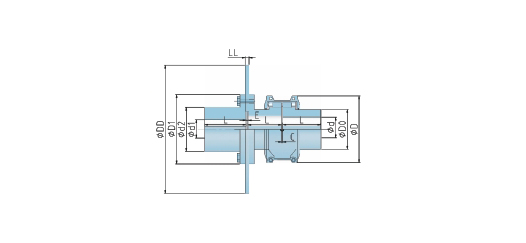

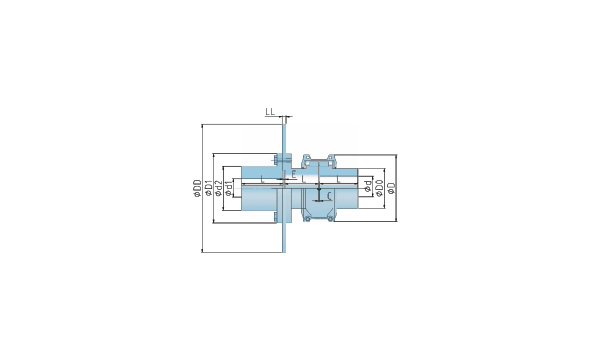

型號 |
公稱轉矩 Tn N.m |
許用轉速 （n） rpm |
******軸孔 d1 mm |
******軸孔 d mm |
軸孔長度 L mm |
中間長度 L1 mm |
制動盤外 DD mm |
制動盤寬 LL mm |
D mm |
D2 mm |
間隙 C mm |
間隙 E mm |
質量無孔 kg |
充油量 kg |
|
6060T |
230 |
3690 |
80 |
56 |
75 |
75 |
315 |
30 |
150 |
105 |
3 |
20 |
14.4 |
0.086 |
|
6070T |
330 |
3500 |
85 |
65 |
80 |
80 |
315 |
30 |
150 |
110 |
3 |
20 |
18.3 |
0.113 |
|
6080T |
680 |
3160 |
95 |
80 |
95 |
95 |
315 |
30 |
215 |
122 |
3 |
20 |
30.4 |
0.172 |
|
6090T |
1240 |
3060 |
110 |
95 |
105 |
105 |
400 |
30 |
250 |
142 |
3 |
20 |
44.3 |
0.254 |
|
6100T |
2090 |
2074 |
130 |
110 |
125 |
125 |
400 |
30 |
260 |
172 |
5 |
20 |
75.6 |
0.426 |
|
6110T |
3100 |
1900 |
150 |
120 |
135 |
135 |
450 |
30 |
300 |
198 |
5 |
20 |
112.6 |
0.508 |
|
6120T |
4500 |
1750 |
170 |
140 |
155 |
155 |
500 |
30 |
240 |
225 |
6 |
20 |
142.5 |
0.735 |
|
6130T |
6600 |
1550 |
190 |
170 |
175 |
160 |
560 |
30 |
376 |
238 |
6 |
20 |
192.3 |
0.908 |
|
6140T |
9500 |
1450 |
210 |
200 |
190 |
170 |
630 |
30 |
453 |
268 |
6 |
20 |
262.3 |
1.135 |
|
6150T |
13200 |
1300 |
240 |
215 |
200 |
190 |
710 |
30 |
494 |
298 |
6 |
20 |
335.6 |
1.952 |
|
6160T |
18800 |
1150 |
265 |
240 |
215 |
200 |
800 |
30 |
539 |
328 |
6 |
20 |
480.2 |
2.815 |
|
6170T |
24800 |
950 |
310 |
280 |
230 |
210 |
800 |
30 |
597 |
390 |
10 |
20 |
660.2 |
3.496 |
|
6180T |
34300 |
920 |
325 |
300 |
270 |
220 |
900 |
30 |
663 |
430 |
10 |
30 |
910.5 |
3.768 |
|
6190T |
45600 |
890 |
350 |
320 |
290 |
240 |
900 |
30 |
720 |
480 |
10 |
30 |
1128 |
4.400 |
|
6200T |
62000 |
780 |
390 |
360 |
320 |
260 |
1000 |
30 |
850 |
530 |
10 |
30 |
1572 |
5.630 |
|
6210T |
83000 |
820 |
420 |
380 |
350 |
310 |
1200 |
30 |
920 |
580 |
13 |
30 |
2126 |
10.53 |
|
6220T |
112000 |
650 |
450 |
420 |
390 |
330 |
1400 |
30 |
930 |
620 |
13 |
30 |
2785 |
16.07 |
|
6230T |
145000 |
550 |
490 |
450 |
420 |
380 |
1800 |
30 |
1000 |
660 |
13 |
30 |
3584 |
24.06 |
|
6240T |
186000 |
500 |
520 |
480 |
450 |
420 |
2200 |
30 |
1100 |
705 |
13 |
30 |
4735 |
33.82 |
注：具體技術參數來電咨詢0577-65205101。
